Lifetime assessment of reactor vessels

We assessed the integrity of high temperature reactor vessels.

The challenge

The reprocessing of spent nuclear fuel involves a number of high-temperature processes which can damage the reactor pressure vessels as a result of creep rupture. Our client’s rigorous inspection review highlighted possible defects in the vessel welds (generated either from manufacture or operational mechanisms), and they asked Frazer-Nash to analyse the vessels to ensure they could be used safety, up to and beyond their design life.


Our solution

After comprehensively reviewing the operational history of the vessels to identify regions most at risk, we were able to get a clearer understanding of the operational loadings which are placed upon the vessels. We then used heat-transfer and finite element (FE) analysis to determine the operational stress states which are likely to cause creep.

By combining the results of the FE modelling with the conclusions of the operational history review, we were able to carry out detailed and accurate creep-fatigue assessments in accordance with guidance from the BS7910 safety standard. We were able to reassure our client that their pressure vessels were safe from the danger of creep rupture – within any conceivable lifespan.



These assessments were able to accurately predict the vessel locations most vulnerable from creep damage, allowing future inspections to focus on key areas. The tangible benefits of our findings were:  A reduction in operational downtime  A reduction in operator dose Uptake  A reduction in operational costs  Confidence in safe operations  Compliance with British Safety Standards.


Screenshot 2020 05 03 At 15.01.39

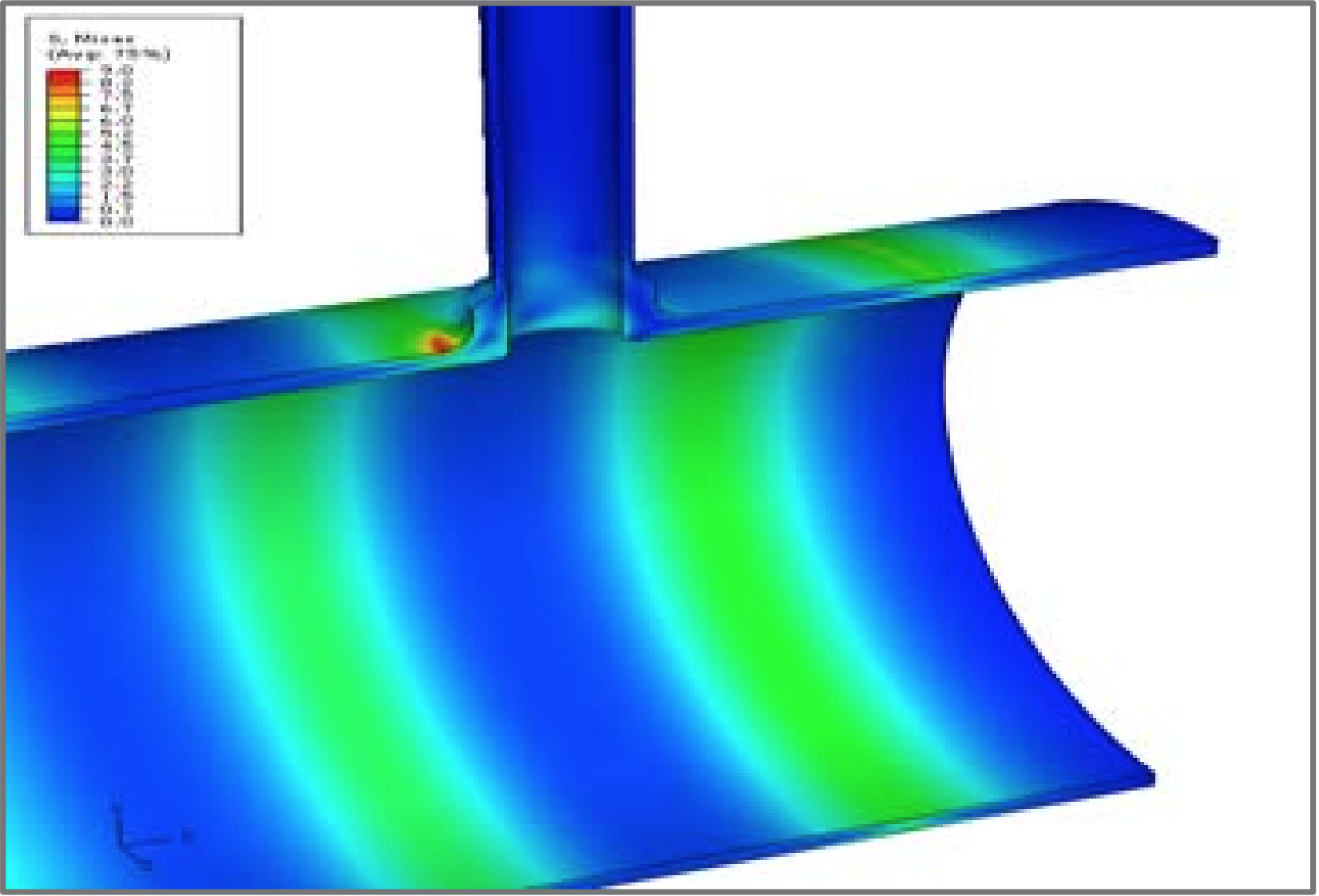

Figure 1: Thermal stress around a vessel nozzle
Screenshot 2020 05 03 At 15.01.20

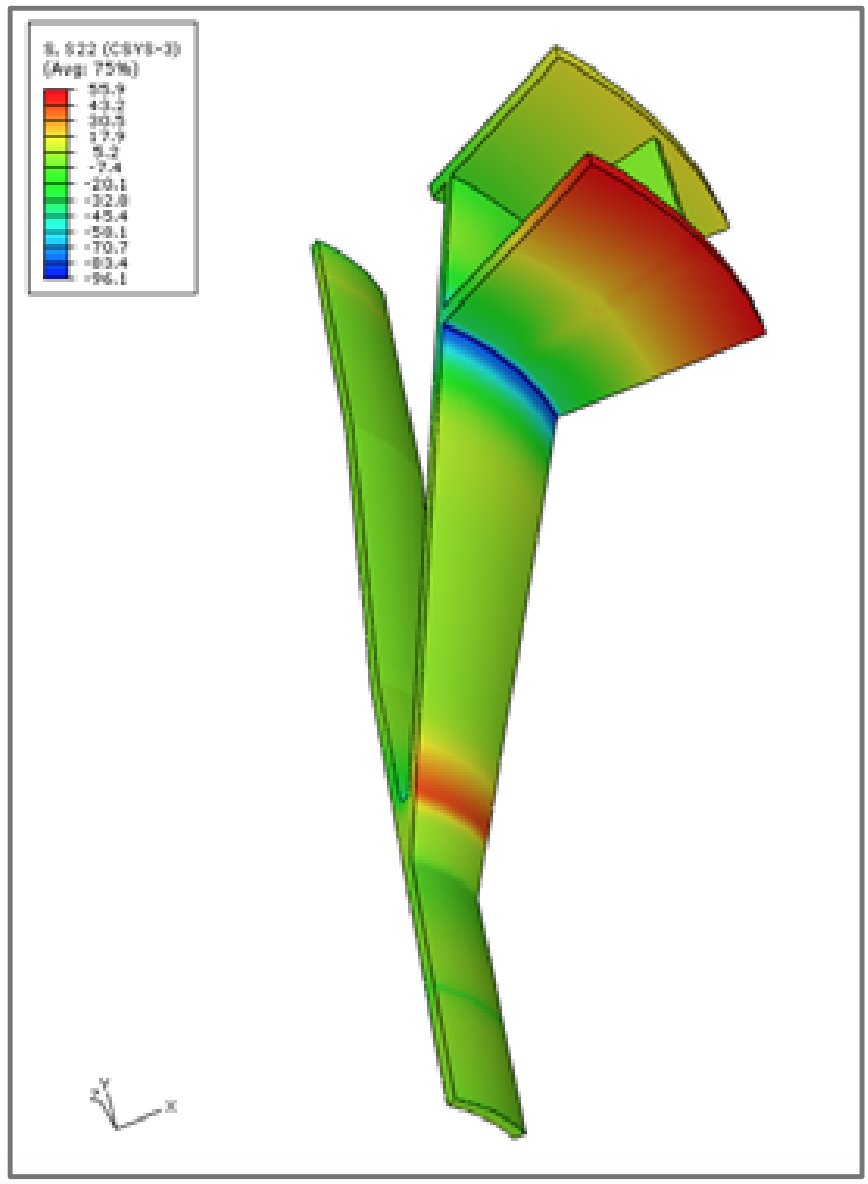

Figure 2: Thermal stress in a section of the reactor vessel
